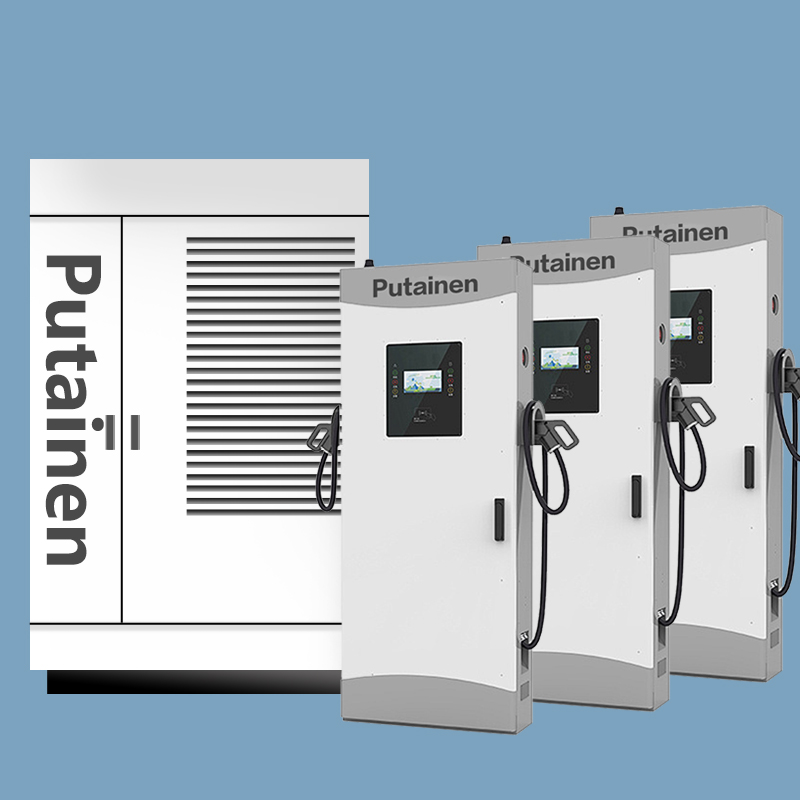

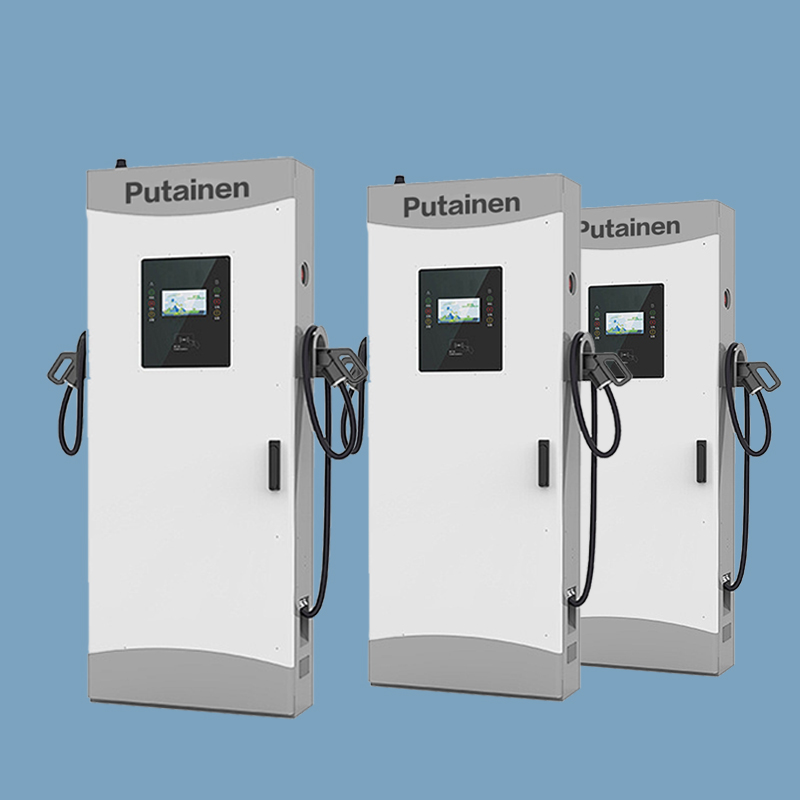

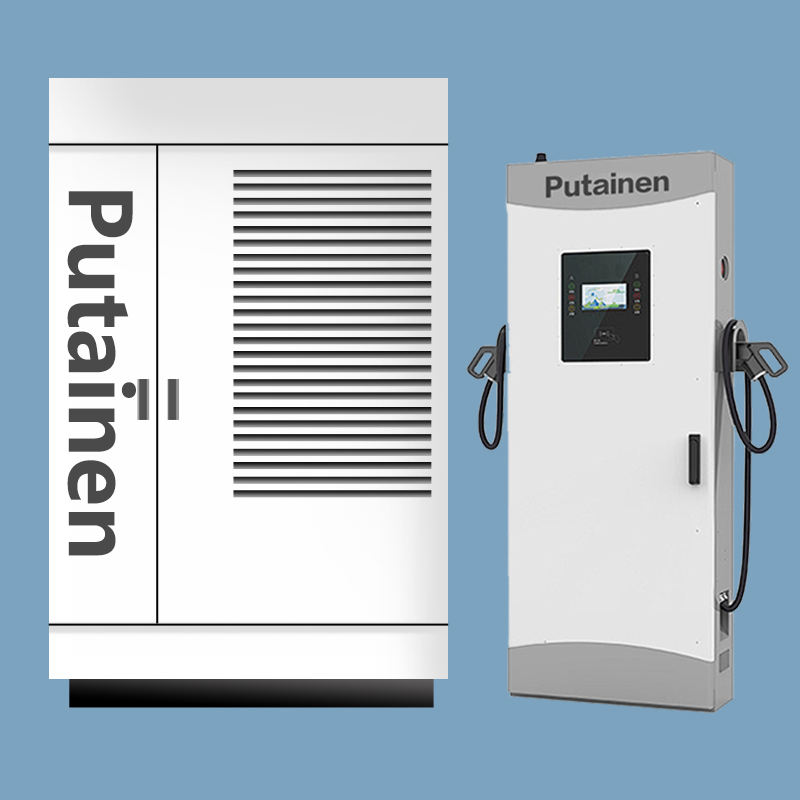

360KW/480KW/720KW Flexible Charging Group

The DC charging pile, which consists of a rectifier cabinet and a charging terminal, meets the requirements of a centralized control system. It adopts a full matrix topology structure to achieve flexible charging and intelligent control of power distribution capacity.

  • Product Name 360KW/48CKW/720KW Flexible charging group
  • Display 7-inch touch screen
  • Input Voltage AC380±10% (Three phasefive-linesystem)
  • Rated Current 660A / 880A / 1320A
Contact us
product details

description2

The DC charging pile, which consists of a rectifier cabinet and a charging terminal, meets the requirements of a centralized control system. It adopts a full matrix topology structure to achieve flexible charging and intelligent control of power distribution capacity. It supports remote fault diagnosis through the operation and maintenance platform, and can achieve multi-platform integration to meet various operational needs.

PRODUCT SPECIFICATION

Product Name

360KW/48CKW/720KW Flexible charging group

Display

7-inch touch screen

Input Voltage

AC380±10% (Three phasefive-linesystem)

Rated Current

660A / 880A / 1320A

Single-gun maximum outputcurrent

250A

Singlegunoutputvoltage

200V~ 1000VDC

Singlegun Output Power

120KWC

Measuring Accuracy

Level 0.5

Working Condition

Height: ≤ 2000m; Temperature: -20°C ~ +60°C

Charging Mode

Swipe card or scan code

Network Mode

4G、Ethernet

Input Frequency

50±5Hz

Protection Function

Overvoltage, undervoltage, overcurrent, shortcircuit, surge, leakage, etc

Charging Interface

GB/T 20234.2-2015

Charging Line Length

5 meters standard (optional)

Protection Rating

IP54

description2

Color Touch Screengbv

Color Touch Screen

Equipped with a 4.3-inch color touchscreen, supports network connectivity, and enables card or QR code payments.
High Compatibilitym7w

High Compatibility

Aerospace-grade cables, national standard interfaces and protocols, making it compatible with nearly all electric vehicles
Performance Chip847

Performance Chip

Utilizes high-performance chips with excellent computational and control capabilities.It supports network connectivity and enables card or QR code payments.
Stable and Reliablexhc

Stable and Reliable

 Reasonable structural layout with clear separation between high and low voltage, ensuring a stable and reliable system.
Strong Corrosion Resistancef9i

Strong Corrosion Resistance

Durable sheet metal casing with exquisite craftsmanship and strong corrosion resistance.
Customizable0ww

Modular Configuration

Modular configuration, ensuring safety, relabilit, easy insallation, maintenance, and scalability withhigh fault tolerance.
Operating Efficiencygzs

High Operating Efficiency

Fully digitalized design allows for remote diagnosis of charging faults, improving on-ite operational efficiency.
